I've be covering the LCD next. I'll be using the 16x2 characters LCD. As such, please prepare the necessary cable for the LCD unless you want to use jumpers.
Having the LCD will make learning easier and faster. As you develop you own codes, you are bound to have logical errors (which are not detected by MikroC). Using strategically embedded LCD updating codes, you can diagnose and troubleshoot you codes faster.

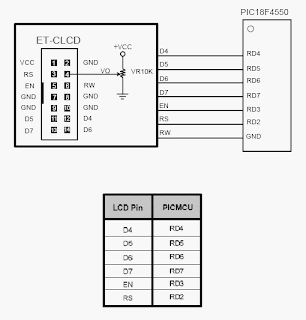

The connection diagram (copied from the development datasheet) is shown below. Don't forget the power connections to the LCD (not shown in the schematic below).
